Solvent Pass-Through Check Valve, Factory Installed, Stainless Steel - 25969

Model No
25969
$544.00

Made in USA

Usually ships in 30 days

Need a bulk or special order? Get a quote

Approvals FM Approval

Description:

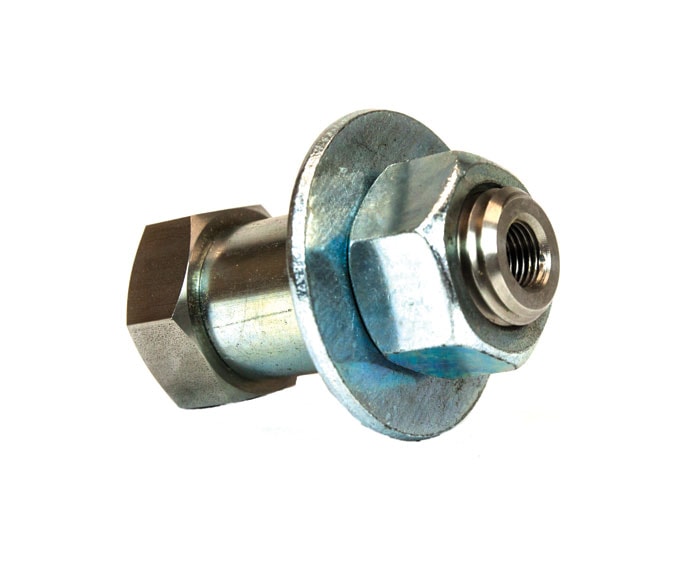

The Pass-through Check Valve (model 25969) can be used on the sides or back of flammable liquid safety cabinets. This unique system provides a means to dispense solvent through the wall of a cabinet. It can be installed either to dispense liquid into or dispense liquid out of the cabinet. Two ¼-in NPT threaded fittings (not included) are required to thread into both sides of the pass-through. Only install on the sides and back of the safety cabinet, never on the doors, bottom or top of a cabinet.

Factory installed—must be ordered with cabinet.

Note: This TechTALK has guidelines for ordering factory-installed pass-through valves for Justrite safety cabinets to maintain FM approval and our 10-year warranty.

Product Summary:


  • Includes safety check valve to prevent backflow
  • Use to dispense liquid into or dispense liquid out of the cabinet
  • All stainless-steel construction
  • Factory installed and FM-Approved with purchased safety cabinet

Specifications

More Information
Model No 25969
UPC Code 697841008625
International Model No. 25969
FM Approval Yes
Net Weight, lbs 0.8
Net Weight, kg 0.4
