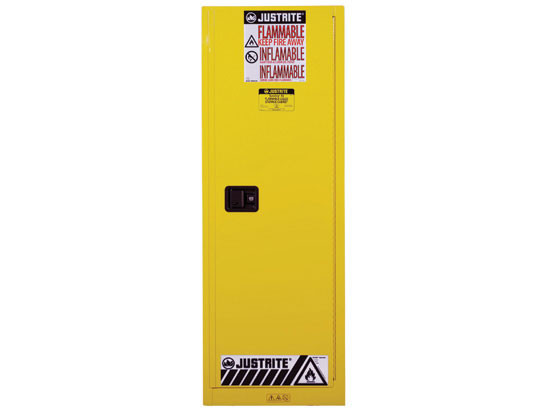

22 gallon Slimline Flammable Safety Cabinet, 1 Self-Close Door - Sure-Grip® EX

Only %1 left
Model No
892220 / 892221 / 892223 / 892225
As low as $1,310.00

Usually ships in 10 days Please contact customer service at
800-798-9250 for lead times.

Need a bulk or special order? Get a quote

Compliance OSHA ComplianceComplies with International Fire CodeComplies with NFPA Code 30
Approvals FM Approval

Description:

Protect workers, reduce fire risks, and improve productivity by storing flammable fuels and chemicals in code-compliant safety cabinets. Designed to meet OSHA and NFPA standards, Sure-Grip® EX cabinets are constructed of sturdy 18-gauge (1-mm) thick double-wall, welded steel with 1-1/2” (38-mm) of insulating air space for fire resistance. High-performance, self-latching doors close easily and securely for maximum protection under fire conditions. Fail-safe closing mechanism ensures three-point stainless steel bullet latching system works every time.

For added security, U-Loc handle comes with a cylinder lock and key set or accepts an optional padlock. Haz-Alert reflective warning labels are highly visible under fire conditions or during power outages when illuminated with a flashlight.

Looking for a custom safety cabinet? Request a quote here for your storage requirements.

Patented SpillSlope® galvanized steel shelves direct spills to back and bottom of a leakproof 2” (51-mm) bottom sump. They adjust on 3” (76-mm) centers for versatile storage. Cabinets also feature dual vents with flame arresters, four adjustable self-leveling feet, grounding connector, and trilingual warning label. Durable lead-free epoxy/polyester powder-coat finish provides excellent chemical resistance.

Manual-close door(s) opens to a full 180 degrees and self-latches when pushed closed. Self-close door(s) shuts and latches automatically when a fusible link melts at 165°F (74ºC) under fire conditions. Unique, concealed self-closing mechanism offers obstruction-free access to contents.

All door styles meet OSHA and NFPA 30; self-close door styles also meet NFPA 1 and the International Fire Code.

Most cabinets are FM approved and all come with a ten-year warranty.

Use alone or alongside larger cabinets for expanded storage when floor space is limited. The standard slimline cabinet is 18” (457-mm) deep and fits flush alongside a 45-gallon (170-L) cabinet. The deep slimline cabinet is 34” (864-mm) deep and fits alongside a 60- or 90-gallon (227- or 341-L) cabinet. Both cabinets measure only 23-1/4” (591-mm) wide. These cabinets have all the great features and benefits of our classic cabinets as outlined below.

Product Summary:


  • Ideal when space is tight
  • Protect workers
  • Reduce fire risks
  • Meet safety codes
  • Ten-year warranty
  • Multiple color options available
  • Custom safety cabinets available, get a quote here

WARNING:This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

Specifications

More Information
Model No 892220 / 892221 / 892223 / 892225
Material Specifications 18-Gauge CR Steel
FM Approval Yes
OSHA Compliance Yes
Complies with International Fire Code Yes
Complies with NFPA Code 30 Yes
Complies with NFPA 1 Fire-Code Yes
Capacity 22 gallon
Liter Capacity 83
Number of Doors 1
Door Type Self-close
Number of Shelves 3
Adjustable Shelves Yes
Dimensions, Exterior 65" H x 23.25" W x 18" D
1651mm H x 591mm W x 457mm D
Dimensions, Interior 60.5" H x 20" W x 14.6" D
1537mm H x 508mm W x 370mm D
Net Weight, lbs 191.0
Net Weight, kg 86.6
