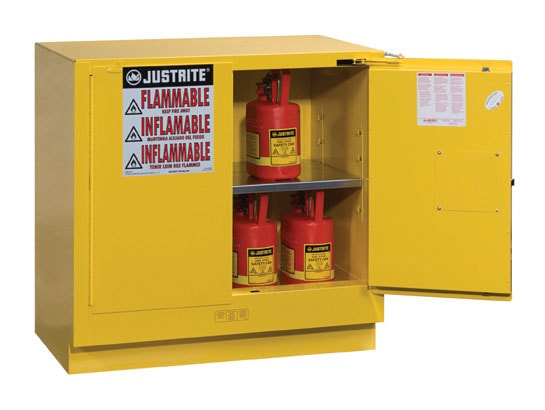

22 gallon Undercounter Flammable Safety Cabinet, 2 Self-Close Doors - Sure-Grip® EX

Only %1 left
Model No
892320 / 892321 / 892323 / 892325
As low as $1,370.00

Usually ships in 15 days Please contact customer service at
800-798-9250 for lead times.

Warranty icon
Compliance OSHA Compliance Complies with International Fire Code Complies with NFPA Code 30
Approvals FM Approval

Product Summary


  • Ideal height for undercounter or workbench
  • Recessed toe kick plate for comfortable walking near workstation
  • Adjustable shelf to fit tall items
  • Sloping shelves direct spills to back and bottom
  • Leakproof 2" bottom sump
  • Meets OSHA, NFPA, NFPA1 and IFC self-close door requirements
  • Custom safety cabinets available, get a quote here

WARNING:This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

Description

Protect workers, reduce fire risks, and improve productivity by storing flammable fuels and chemicals in code-compliant safety cabinets. Designed to meet OSHA and NFPA standards, Sure-Grip® EX cabinets are constructed of sturdy 18-gauge (1-mm) thick double-wall, welded steel with 1-1/2” (38-mm) of insulating air space for fire resistance. High-performance, self-latching doors close easily and securely for maximum protection under fire conditions. Fail-safe closing mechanism ensures three-point stainless steel bullet latching system works every time.

Looking for a custom safety cabinet? Request a quote here for your storage requirements.

For added security, U-Loc handle comes with a cylinder lock and key set or accepts an optional padlock. Haz-Alert reflective warning labels are highly visible under fire conditions or during power outages when illuminated with a flashlight.

Patented SpillSlope® galvanized steel shelves direct spills to back and bottom of a leakproof 2” (51-mm) bottom sump. They adjust on 3” (76-mm) centers for versatile storage. Cabinets also feature dual vents with flame arresters, four adjustable self-leveling feet, grounding connector, and trilingual warning label. Durable lead-free epoxy/polyester powder-coat finish provides excellent chemical resistance.

Manual-close door(s) opens to a full 180 degrees and self-latches when pushed closed. Self-close door(s) shuts and latches automatically when a fusible link melts at 165°F (74ºC) under fire conditions. Unique, concealed self-closing mechanism offers obstruction-free access to contents.

All door styles meet OSHA and NFPA 30; self-close door styles also meet NFPA 1 and the International Fire Code.

Most cabinets are FM approved and all come with a ten-year warranty.

Protect workers, reduce fire risks, and improve productivity by storing flammable fuels and chemicals in code-compliant safety cabinets. Designed to meet OSHA and NFPA standards, Sure-Grip® EX cabinets are constructed of sturdy 18-gauge (1-mm) thick double-wall, welded steel with 1-1/2” (38-mm) of insulating air space for fire resistance. High-performance, self-latching doors close easily and securely for maximum protection under fire conditions. Fail-safe closing mechanism ensures three-point stainless steel bullet latching system works every time.

For added security, U-Loc handle comes with a cylinder lock and key set or accepts an optional padlock. Haz-Alert reflective warning labels are highly visible under fire conditions or during power outages when illuminated with a flashlight.

Patented SpillSlope® galvanized steel shelves direct spills to back and bottom of a leakproof 2” (51-mm) bottom sump. They adjust on 3” (76-mm) centers for versatile storage. Cabinets also feature dual vents with flame arresters, four adjustable self-leveling feet, grounding connector, and trilingual warning label. Durable lead-free epoxy/polyester powder-coat finish provides excellent chemical resistance.

All cabinets are FM approved and come with a ten-year warranty.

Self-closing models also meet NFPA1 and the International Fire Code. They shut and latch automatically when a fusible link melts at 165°F (74ºC) under fire conditions. Unique, concealed self-closing mechanism offers obstruction-free access to contents.

- See more at: http://justrite.wsoldev.com/Products/Safety-Cabinets-and-Containers/Safety-Cabinets-for-Flammables/Transportable-Mini-Countertop-and-Compact-Cabinets/890200/?id=459_1157&epiworkspaceactive=true&visitorgroupsByID=#sthash.lEs2slYg.dpuf

Take advantage of undercounter space to safely store flammable liquids. Each cabinet is sized and fitted with a 3-1/2”H x 2-1/2”D (89-mm x 64-mm) kick plate that allows workers to walk around the workstation comfortably. These cabinets have all the great features and benefits of our classic cabinets as outlined below.

Specifications

More Information
Model No 892320 / 892321 / 892323 / 892325
Material Specifications 18-Gauge Steel
FM Approval Yes
OSHA Compliance Yes
Complies with International Fire Code Yes
Complies with NFPA Code 30 Yes
Complies with NFPA 1 Fire-Code Yes
Capacity 22 gallon
Liter Capacity 83
Number of Doors 2
Door Type Self-close
Number of Shelves 1
Adjustable Shelves Yes
Dimensions, Exterior 35" H x 35" W x 22" D
889mm H x 889mm W x 559mm D
Dimensions, Interior 27.4" H x 31.8" W x 18.8" D
695mm H x 806mm W x 476mm D
Net Weight, lbs 152.0
Net Weight, kg 68.9
