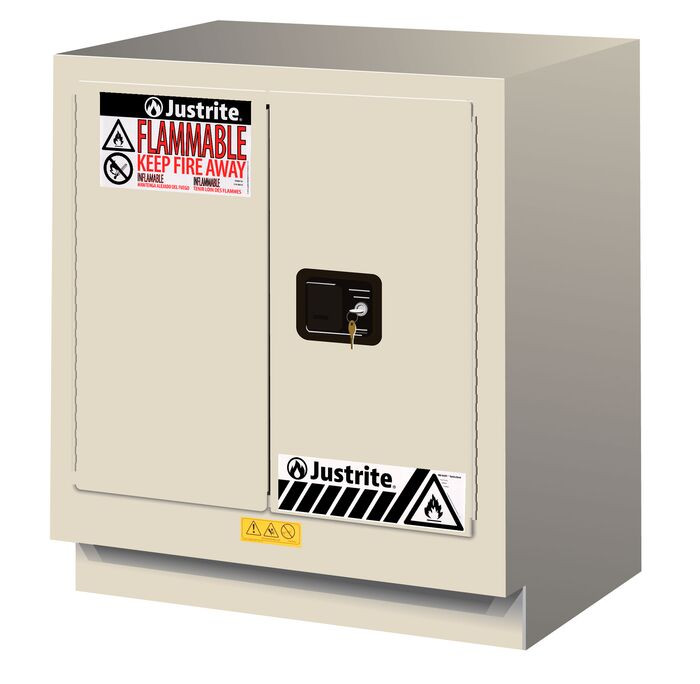

19 Gallon, 1 Shelf, 2 Doors, Manual Close, Flammable Cabinet, Sure-Grip® EX Under Fume Hood, Light Neutral - 883007

Model No
883007
$2,400.00

Usually ships in 50 business days

Warranty icon

Made in USA

Compliance OSHA Compliance Complies with NFPA Code 30
Approvals FM Approval

Product Summary


  • Fits under chemical fume hoods, benches, and counters in lab settings
  • Exterior dimensions of 35.75 in H x 30 in W x 21.625 in D (908 mm H x 762 mm W x 549 mm D)
  • 4-in (102-mm) toe kick improves lab ergonomics and helps prevent spillage and accidents
  • Stores 19 gal (72 L) of flammable liquids
  • Complies with OSHA, NFPA 30 and NFPA 1
  • Fire tested and FM-approved

Description

Keeping bottles of chemicals in a fume hood is a safety risk. The Justrite Sure-Grip® EX Under Fume Hood Safety Cabinet with Manual Close Doors (model 883007) is designed for the safe and code-compliant storage and venting of solvents and flammable liquids in laboratory environments within colleges, universities, pharmaceutical R&D settings, and more.

The light neutral cabinet can store 19 gal (72 L) of flammable liquids and fits under chemical fume hoods, benches, and counters. It features an ergonomic design with a 4-in high by 3-in deep (102-mm high by 77-mm deep) toe kick, which makes it easier for chemical handlers to maintain an appropriate distance. Its exterior dimensions are 35.75 in H x 30 in W x 21.625 in D (908 mm H x 762 mm W x 549 mm D); its 35.75-in (908-mm) height includes leg levelers installed and extended 5/8-in (15.9-mm).

This model is constructed with a sturdy 18-gauge (1-mm) thick steel double-wall, with 1.5 in (38 mm) of insulating air space for fire resistance. The fully welded, not riveted, construction holds the squareness of the unit for a longer life and offers greater protection in a fire since air gaps are reduced.

High-performance, manual-close, self-latching doors (fail safe, 3-point stainless steel) open to a full 180 degrees and close securely for maximum protection under fire conditions when pushed shut. Continuous piano hinges ensure the doors close smoothly every time.

For added security, each cabinet comes with an innovative U-Loc™ handle that does not require manual rotation to engage the mandatory latch. Cabinets include a cylinder lock and key set, or you can choose to use your own padlock. Haz-Alert™ reflective warning labels that read “FLAMMABLE – KEEP FIRE AWAY” are highly visible under fire conditions or during power outages when illuminated with a flashlight.

Model 883007 features one patented, galvanized steel SpillSlope® shelf designed to direct spills to the back and bottom into a 2-in (51-mm) leak-tested sump that meets EPA requirements. Adjustable on 3-in (76-mm) centers, all SpillSlope shelves meet ANSI MH28.1 standards with a 350-lb (159-kg) safe allowable load. Welded shelf hangers interlock with the shelf to offer maximum stability with no flimsy brackets to lose. For replacement shelves, use model 29951.

The cabinet also features back wall vents with built-in flame arresters and a grounding connector to electrically bond directly to the chemical fume hood. Its durable lead-free epoxy/polyester powder-coat finish provides excellent chemical resistance inside and out, as well as minimizes the effects of corrosion and humidity.

Justrite supplies more than 300 safety cabinet models ranging from 4- to 115-gal (15- to 435-L), to meet a versatile range of safety, compliance, and storage requirements. Our line of under fume hood flammable cabinets are available in four widths ranging from 24 in (610 mm) to 48 in (1219 mm). Single-door cabinets are offered in either left or right-hinge options for easy operation.

All Justrite cabinets carry a 10-year warranty. Model 883007 is tested and approved by FM Approvals. It complies with OSHA, NFPA 30, and NFPA 1 requirements.

Safety Considerations for Under Fume Hood Cabinets

The requirements for handling and storing chemicals are complex and depend on how flammable the liquid is. There is no room for error, so it is critical to choose a safety cabinet that has been independently tested to meet the standards of your industry and local jurisdictions. Justrite flammable cabinets are best in class and are trusted within a wide range of industrial settings across the world, including laboratories, manufacturing, oil refineries, chemical processing plants, and more.

For more information, please consult our workplace safety article, about the requirements for flammable liquid storage.

Specifications

More Information
Model No 883007
UPC 697841129818
International Model No. 883007
Color Light Neutral
Material Specifications 18-Gauge Steel
FM Approval Yes
OSHA Compliance Yes
Complies with NFPA Code 30 Yes
Capacity 19 gallon
Liter Capacity 72
Number of Doors 2
Door Type Manual
Number of Shelves 1
Adjustable Shelves Yes
Dimensions, Exterior 35.75" H x 30" W x 21.625" D
908mm H x 762mm W x 549mm D
Dimensions, Interior 26.5" H x 26.8" W x 18.3" D
674mm H x 680mm W x 466mm D
Height (Inches) 35.75
Width (Inches) 30
Depth 21.625
Net Weight, lbs 156.0
Net Weight, kg 70.8

Justrite Flammable Liquid Safety Cabinets

Except in rare cases of natural catastrophe, every fire is preventative. Virtually every place of business has an occasion to use flammable or combustible liquids. Whether it is a manufacturing or processing plant, laboratory, or commercial institution, fire risks can be reduced by storing hazardous liquids in Justrite flammable liquid safety cabinets.

Flammable Cabinet Safety Features

Sturdy Cabinet Construction

Sturdy 18-gauge (1 mm) double wall steel fully welded (not riveted) construction with 1.5-in of insulating air space provides greater protection in a fire since air gaps are reduced. The fully-welded construction also holds squareness for a longer lifespan.

Corrosion Resistance

The durable, chemical resistant, lead-free powder-coat paint finish inside and out helps retain the high gloss look and minimizes the effects of corrosion and humidity.

Durable Door Hinges

All cabinet doors feature a continuous piano hinge to ensure smooth closure and even weight distribution, which makes it easier to open and close.



Innovative Door Features

Self-indexing cabinet doors feature an astragal lip that help seal the gap between the door, preventing moisture, debris and unauthorized access from affecting the contents inside. Rounded corners on Justrite safety cabinet doors help reduce accidental nicks and cuts.

Secure Closure

All cabinets have a stainless steel, 3-point bullet self-latching door system to provide fail-safe positive door closure with increased heat resistance.

Self-Indexing Doors

Cabinets with self-closing doors feature a patented, concealed self-close mechanism to provide obstruction-free access to the top shelf space. The self-indexing doors guarantee they will close in sequence and assure a tight closure from top to bottom.

State-of-the-Art Shelves

Patented SpillSlope® shelves are slightly sloped to direct spills to the back and bottom of leakproof sump. The shelves meet ANSI standards of 350 lbs. safe allowable loads. Welded shelf hangers interlock with shelves to offer safe, maximum non-slip stability without flimsy brackets, that adjusts on 3 inch centers.

Leakproof Sump

Cabinets feature a 2-in leakproof containment sump to hold and safely contain dangerous leaks and spills, meeting EPA regulations.

Prevent Unauthorized Use

Easily secure and protect your chemical contents with the flush U-Loc ™ handle that can be locked with included keys or accept a padlock for greater security. U-Loc handles do not require manual rotation to engage the mandatory 3-point latch.

Other safety cabinet features include:

  • Fusible links (on self-close models) hold doors wide open and melt at 165 degrees F (74 degrees Celsius) for automatic closure in case of fire
  • HazAlert™ reflective labels that warns of contents in English, French and Spanish
  • Adjustable leveling feet to ensure stability, even on uneven surfaces

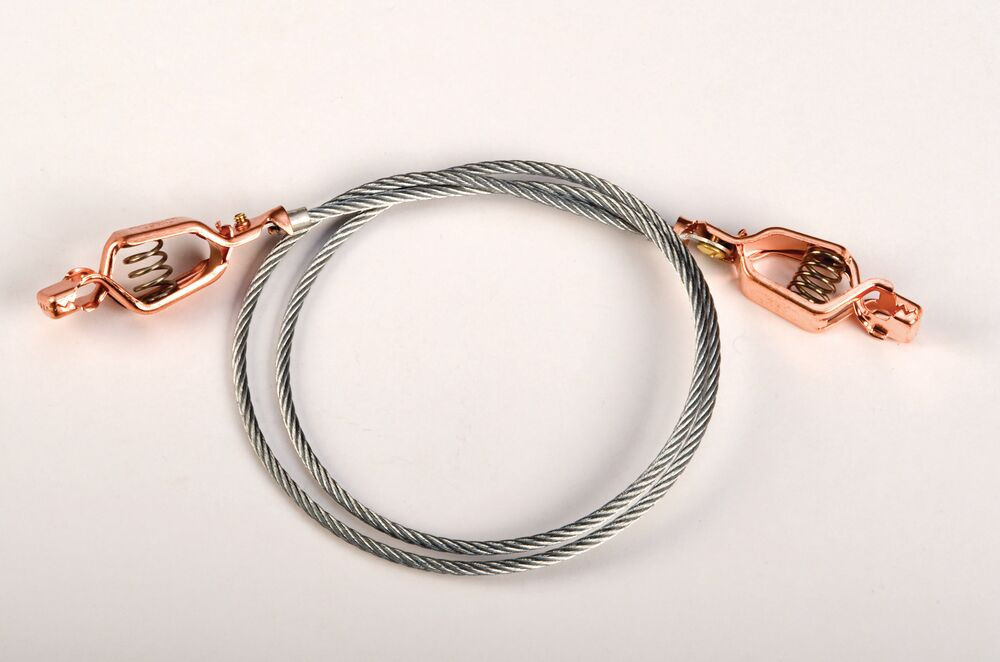

  • Built-in grounding lug (on outside side panel) to accept optional antistatic grounding wire

Under Fume Hood Flammable Cabinets

  • Fully compliant and designed for safe storage of solvents and flammables in laboratories
  • Available in 15-, 19-, 23- and 31-gallon capacities
  • Takes advantage of space under the fume hood for quick or increased access to often used liquids or chemicals
  • Dual vents with flash arresters located on back wall for easy connection if ventilation is needed
  • Recessed toe kick improves ergonomics and mounts flush to other cabinets
  • Cabinet measures 35-¾-in high to fit under fume hoods, benches or counters (height includes leg levelers installed and extended 5/8-in)
  • Right and left-hinge door options available for 15-gallon capacity

Safety Cabinets with Self-Closing Doors – The Safest Option for Chemical Storage

Handling chemicals in the workplace can be a straightforward task with the right equipment. Justrite flammable safety cabinets with self-closing doors simplify this process remarkably.  Not only are the self-closing doors safer in case of fire, it’s also easier to work with the cabinet doors open.

No need to prop them with something heavy, just use the fusible link as it was meant to operate. Installation is easy. While holding the door open, the user inserts the fusible link, then releases the door slowly. The link catches behind the hinge, creating tension that allows the door to remain open.

How to Use Fusible Links to Prop Cabinet Doors Open

Why Use Safety Cabinets with Self-Closing Doors?

Safest Option for Chemical Point of Use in the Workplace.

The fail-safe closing mechanism ensures three-point stainless steel bullet latching system works every time, removing the “human” element. The hidden self-closing feature ensures unobstructed access to the top shelf space, and the self-indexing doors ensure they close in the correct order, achieving a secure seal from top to bottom.

Keep Doors Open When Working with Chemicals

The self-closing doors are designed to automatically close, so when working out of the cabinet in the workplace, use the fusible link to prop doors open. If inadvertently left open in case of fire, the link will melt at 165 degrees F, slamming the doors shut to prevent fire from reaching the cabinet contents.

Meets All Fire Codes

Some states require using safety cabinets with self-closing doors, but not all of them. Since fire codes and regulations can vary by state, choosing a cabinet with self-closing doors is the only way to guarantee compliance with NFPA and IFC codes as well as authorities having jurisdiction.

New Fusible Link Mounting Location 1 (1).pdf

Should Flammable Safety Cabinets Be Vented?

Justrite flammable safety cabinets are designed to meet NFPA 30 code requirements. All cabinets include dual vents with built-in flame arresters with bungs, usually located on the side of a cabinet: one high and one low. The vents typically accommodate a two-inch NPT threaded rigid steel pipe. Per NFPA, venting is not recommended unless the authority having jurisdiction requires it or if building owners require it for increased health and safety. In such cases, the NFPA standard recommends a thermally actuated damper, such as the Justrite Safe-T-Vent™ Thermally-Actuated Safety Cabinet Vent Damper, as the best way to ensure the performance of a ventilated safety cabinet during a fire.



 View the Full Line of Safety Cabinets and Storage Products

Outdoor Flammable
Cabinets

View More >

Drum Storage
Cabinets

View More >

Paint Storage
Cabinets

View More >

Corrosive
Cabinets

View More >

Justrite flammable cabinets are designed and constructed to be fire resistant in compliance with NFPA and OSHA requirements. This testing is important for the safety of both the stored materials and the surrounding environment in case of fire.

Built to protect, built to last.

Justrite products have been proudly made in the USA since 1906. Workplace safety is fundamentally about the people you strive to protect, and the environments in which they live and work.  At Justrite, our mission is to identify workplace vulnerabilities and guide you in creating an ecosystem of safety—so your team can work with confidence.

Justrite safety cabinets are produced in the US at our manufacturing facility located in Mattoon, IL.

Why Choose Justrite Cabinets?

Quality Engineering

Designed for long-lasting use even in the most rugged of workplaces, Justrite cabinets last twice as long as competitor cabinets, due to higher-quality American steel, fully-welded construction, and a durable, chemical-resistant powder-coat paint finish that retains its high gloss look while minimizing effects of corrosion and humidity.

Compliance Made Secure

Along with meeting OSHA 29 CFR 1910.106 and NFPA 30 requirements, all FM-approved safety cabinets are designed to maintain an internal temperature below 325 F when exposed to a 10-minute fire test. Plus, every cabinet goes through a 30-point quality check before shipping.

Custom Cabinet Options

Whether you need uncommon cabinet capacity or dimensions, or even different paint colors such as orange or silver, Justrite can help create custom safety cabinets to meet your specific storage requirements.

Explore the Large, Diverse Selection of Justrite Safety Cabinets

Justrite offers cabinets in a wide range of capacity sizes, color options and applications, to help facilitate safe chemical storage no matter what the need or industry. Per regulatory codes, safety cabinets must be correctly labeled to represent hazards found in an area. While codes do not mandate the specific color, industry standard customarily observe certain colors for defined liquids or chemicals:

Color Name Industry Standards Symbol
Yellow Flammable chemicals and liquids
Red Paints, inks and other combustible liquids
Blue Corrosive and hazardous liquids and solids
Green Pesticides and insecticides
Silver / Neutral Laboratory cabinets
White / Beige / Gray Waste or outdoor lockers

Need replacement parts or accessories like extra shelves or shelf trays? Justrite is your one-stop-shop.

Access the Safety Your Workplace Needs

Buying safety products should be easy, but determining which products to use and where to find them can be frustrating.  Justrite takes the hassle out of the process with a comprehensive portfolio of safety equipment. Find out what other products can help protect your people, property and the planet.
