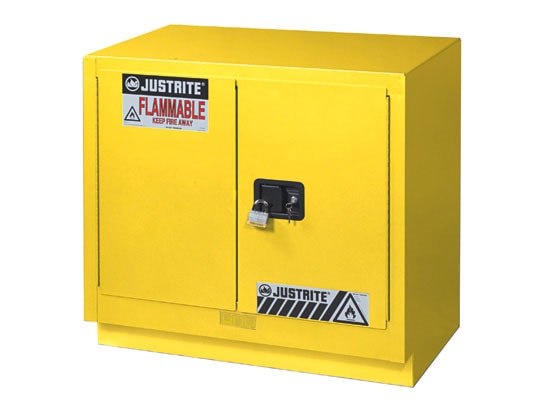

23 Gal Under Fume Hood Solvent/Flammable Liquid Safety Cabinet, 2 Manual Close Doors - Sure-Grip® EX

Only %1 left
Model No
883600 / 883604 / 883607
As low as $2,200.00

Usually ships in 20 days Please contact customer service at
800-798-9250 for lead times.

Warranty icon
Compliance OSHA Compliance Complies with NFPA Code 30
Approvals FM Approval

Product Summary


  • Safe storage of solvents and flammables in laboratories
  • Has 4-in deep toe kick
  • FM Approved
  • Multiple color options available

Description

Protect workers, reduce fire risks, and improve productivity by storing flammable fuels and chemicals in code-compliant safety cabinets. Designed to meet OSHA and NFPA standards, Sure-Grip® EX cabinets are constructed of sturdy 18-gauge (1-mm) thick double-wall, welded steel with 1-1/2” (38-mm) of insulating air space for fire resistance. High-performance, self-latching doors close easily and securely for maximum protection under fire conditions. Fail-safe closing mechanism ensures three-point stainless steel bullet latching system works every time.

For added security, U-Loc handle comes with a cylinder lock and key set or accepts an optional padlock. Haz-Alert reflective warning labels are highly visible under fire conditions or during power outages when illuminated with a flashlight.

Patented SpillSlope® galvanized steel shelves direct spills to back and bottom of a leakproof 2” (51-mm) bottom sump. They adjust on 3” (76-mm) centers for versatile storage. Cabinets also feature dual vents with flame arresters, four adjustable self-leveling feet, grounding connector, and trilingual warning label. Durable lead-free epoxy/polyester powder-coat finish provides excellent chemical resistance.

Manual-close door(s) opens to a full 180 degrees and self-latches when pushed closed. Self-close door(s) shuts and latches automatically when a fusible link melts at 165°F (74ºC) under fire conditions. Unique, concealed self-closing mechanism offers obstruction-free access to contents.

All door styles meet OSHA and NFPA 30; self-close door styles also meet NFPA 1 and the International Fire Code.

Most cabinets are FM approved and all come with a ten-year warranty.

Under Fume Hood Cabinets are fully compliant and designed for the safe storage and venting of solvents and flammable liquids. Ideal in laboratories under fume hoods, benches, or counters, these cabinets are available in four widths ranging from 24" (610mm) to 48" (1219mm). Single-door cabinets are offered in either left or right-hinge door closures for easy operation where space is at a premium. Back wall vents with built-in flame arresters are positioned at lower left and top right for jurisdictions that mandate venting of vapors. In addition, they have all the great features and benefits of our classic cabinets as outlined below.

Specifications

More Information
Model No 883600 / 883604 / 883607
Material Specifications 18-Gauge Steel
FM Approval Yes
OSHA Compliance Yes
Complies with NFPA Code 30 Yes
Capacity 23 gallon
Liter Capacity 87
Number of Doors 2
Door Type Manual
Number of Shelves 1
Adjustable Shelves Yes
Dimensions, Exterior 35.75" H x 36" W x 21.625" D
908mm H x 914mm W x 549mm D
Dimensions, Interior 26.5" H x 32.8" W x 18.3" D
674mm H x 832mm W x 466mm D
Net Weight, lbs 166.0
Net Weight, kg 75.3
