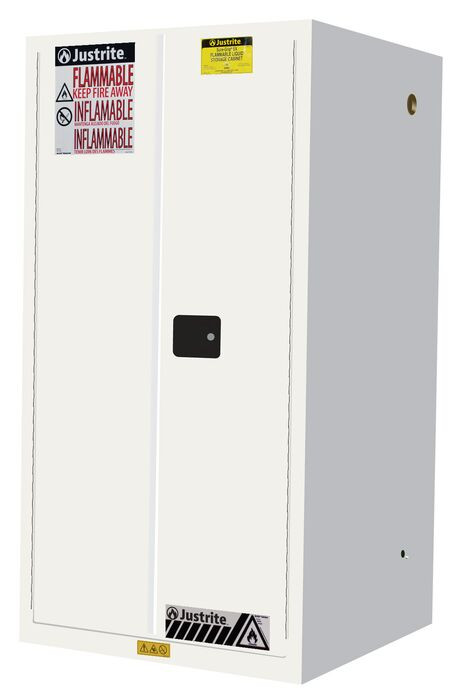

One of the leading causes of industrial fires is the improper storage and handling of flammable liquids. The Justrite Standard Sure-Grip® EX Flammable Safety Cabinet with Manual Close Doors (model 896005) is designed to safely store flammable liquids. Its exterior dimensions are 65 in H x 34 in W x 34 in D (1651 mm H x 864 mm W x 864 mm D). These white cabinets can store 60 gal (227 L) of flammable liquids.
This model is constructed with a sturdy 18-gauge (1-mm) thick steel double-wall, with 1.5 in (38 mm) of insulating air space for fire resistance. The fully welded, not riveted, construction holds the squareness of the unit for a longer life and offers greater protection in a fire since air gaps are reduced.
Looking for a custom safety cabinet? Request a quote here for your storage requirements.
High-performance, manual-close, self-latching doors (fail safe, 3-point stainless steel) open to a full 180 degrees and close securely for maximum protection under fire conditions when pushed shut. Continuous piano hinges ensure the doors close smoothly every time.
For added security, each cabinet comes with an innovative U-Loc™ handle that does not require manual rotation to engage the mandatory latch. Cabinets include a cylinder lock and key set, or you can choose to use your own padlock. Trilingual Haz-Alert™ reflective warning labels that read “FLAMMABLE – KEEP FIRE AWAY” are highly visible under fire conditions or during power outages when illuminated with a flashlight.
Model 896005 features two patented, galvanized steel SpillSlope® shelves designed to direct spills to the back and bottom into a 2-in (51-mm) leak-tested sump that meets EPA requirements. Adjustable on 3-in (76-mm) centers, all SpillSlope shelves meet ANSI MH28.1 standards with a 350-lb (159-kg) safe allowable load. Welded shelf hangers interlock with the shelf to offer maximum stability with no flimsy brackets to lose. For replacement shelves, use model 29944.
The cabinet also features dual vents with flame arresters, four adjustable self-leveling feet, and a built-in grounding connector. Its durable lead-free epoxy/polyester powder-coat finish provides excellent chemical resistance inside and out, as well as minimizes the effects of corrosion and humidity.
Justrite supplies more than 300 safety cabinet models ranging from 4- to 115-gal (15- to 435-L), to meet a versatile range of safety, compliance, and storage requirements.
All Justrite cabinets carry a 10-year warranty. Model 896005 is tested and approved by FM Approvals. It complies with OSHA, NFPA 30, and NFPA 1 requirements.
For more information, please consult our workplace safety article about the requirements for flammable liquid storage.
| Model No | 896005 |
|---|---|
| UPC | 697841114289 |
| International Model No. | 896005 |
| Color | white |
| Material Specifications | 18-Gauge Steel |
| FM Approval | Yes |
| OSHA Compliance | Yes |
| Complies with NFPA Code 30 | Yes |
| Capacity | 60 gallon |
| Liter Capacity | 227 |
| Number of Doors | 2 |
| Door Type | Manual |
| Number of Shelves | 2 |
| Adjustable Shelves | Yes |
| Dimensions, Exterior | 65" H x 34" W x 34" D |
| 1651mm H x 864mm W x 864mm D | |
| Dimensions, Interior | 60.5" H x 30.8" W x 30.3" D |
| 1537mm H x 781mm W x 771mm D | |
| Height (Inches) | 65 |
| Width (Inches) | 34 |
| Depth | 34 |
| Net Weight, lbs | 328.0 |
| Net Weight, kg | 148.8 |
Except in rare cases of natural catastrophe, every fire is preventative. Virtually every place of business has an occasion to use flammable or combustible liquids. Whether it is a manufacturing or processing plant, laboratory, or commercial institution, fire risks can be reduced by storing hazardous liquids in Justrite flammable liquid safety cabinets.
Sturdy 18-gauge (1 mm) double wall steel fully welded (not riveted) construction with 1.5-in of insulating air space provides greater protection in a fire since air gaps are reduced. The fully-welded construction also holds squareness for a longer lifespan.
The durable, chemical resistant, lead-free powder-coat paint finish inside and out helps retain the high gloss look and minimizes the effects of corrosion and humidity.
All cabinet doors feature a continuous piano hinge to ensure smooth closure and even weight distribution, which makes it easier to open and close.
Self-indexing cabinet doors feature an astragal lip that help seal the gap between the door, preventing moisture, debris and unauthorized access from affecting the contents inside. Rounded corners on Justrite safety cabinet doors help reduce accidental nicks and cuts.
All cabinets have a stainless steel, 3-point bullet self-latching door system to provide fail-safe positive door closure with increased heat resistance.
Cabinets with self-closing doors feature a patented, concealed self-close mechanism to provide obstruction-free access to the top shelf space. The self-indexing doors guarantee they will close in sequence and assure a tight closure from top to bottom.
Patented SpillSlope® shelves are slightly sloped to direct spills to the back and bottom of leakproof sump. The shelves meet ANSI standards of 350 lbs. safe allowable loads. Welded shelf hangers interlock with shelves to offer safe, maximum non-slip stability without flimsy brackets, that adjusts on 3 inch centers.
Cabinets feature a 2-in leakproof containment sump to hold and safely contain dangerous leaks and spills, meeting EPA regulations.
Easily secure and protect your chemical contents with the flush U-Loc ™ handle that can be locked with included keys or accept a padlock for greater security. U-Loc handles do not require manual rotation to engage the mandatory 3-point latch.
Handling chemicals in the workplace can be a straightforward task with the right equipment. Justrite flammable safety cabinets with self-closing doors simplify this process remarkably. Not only are the self-closing doors safer in case of fire, it’s also easier to work with the cabinet doors open.
No need to prop them with something heavy, just use the fusible link as it was meant to operate. Installation is easy. While holding the door open, the user inserts the fusible link, then releases the door slowly. The link catches behind the hinge, creating tension that allows the door to remain open.
Safest Option for Chemical Point of Use in the Workplace.
The fail-safe closing mechanism ensures three-point stainless steel bullet latching system works every time, removing the “human” element. The hidden self-closing feature ensures unobstructed access to the top shelf space, and the self-indexing doors ensure they close in the correct order, achieving a secure seal from top to bottom.
Keep Doors Open When Working with Chemicals
The self-closing doors are designed to automatically close, so when working out of the cabinet in the workplace, use the fusible link to prop doors open. If inadvertently left open in case of fire, the link will melt at 165 degrees F, slamming the doors shut to prevent fire from reaching the cabinet contents.
Meets All Fire Codes
Some states require using safety cabinets with self-closing doors, but not all of them. Since fire codes and regulations can vary by state, choosing a cabinet with self-closing doors is the only way to guarantee compliance with NFPA and IFC codes as well as authorities having jurisdiction.
Justrite flammable safety cabinets are designed to meet NFPA 30 code requirements. All cabinets include dual vents with built-in flame arresters with bungs, usually located on the side of a cabinet: one high and one low. The vents typically accommodate a two-inch NPT threaded rigid steel pipe. Per NFPA, venting is not recommended unless the authority having jurisdiction requires it or if building owners require it for increased health and safety. In such cases, the NFPA standard recommends a thermally actuated damper, such as the Justrite Safe-T-Vent™ Thermally-Actuated Safety Cabinet Vent Damper, as the best way to ensure the performance of a ventilated safety cabinet during a fire.
Outdoor Flammable
Cabinets
Drum Storage
Cabinets
Paint Storage
Cabinets
Corrosive
Cabinets
Justrite products have been proudly made in the USA since 1906. Workplace safety is fundamentally about the people you strive to protect, and the environments in which they live and work. At Justrite, our mission is to identify workplace vulnerabilities and guide you in creating an ecosystem of safety—so your team can work with confidence.
Justrite safety cabinets are produced in the US at our manufacturing facility located in Mattoon, IL.
Quality Engineering
Designed for long-lasting use even in the most rugged of workplaces, Justrite cabinets last twice as long as competitor cabinets, due to higher-quality American steel, fully-welded construction, and a durable, chemical-resistant powder-coat paint finish that retains its high gloss look while minimizing effects of corrosion and humidity.
Compliance Made Secure
Along with meeting OSHA 29 CFR 1910.106 and NFPA 30 requirements, all FM-approved safety cabinets are designed to maintain an internal temperature below 325 F when exposed to a 10-minute fire test. Plus, every cabinet goes through a 30-point quality check before shipping.
Custom Cabinet Options
Whether you need uncommon cabinet capacity or dimensions, or even different paint colors such as orange or silver, Justrite can help create custom safety cabinets to meet your specific storage requirements.
Justrite offers cabinets in a wide range of capacity sizes, color options and applications, to help facilitate safe chemical storage no matter what the need or industry. Per regulatory codes, safety cabinets must be correctly labeled to represent hazards found in an area. While codes do not mandate the specific color, industry standard customarily observe certain colors for defined liquids or chemicals:
| Color Name | Industry Standards | Symbol |
| Yellow | Flammable chemicals and liquids |  |
| Red | Paints, inks and other combustible liquids |
|
| Blue | Corrosive and hazardous liquids and solids |
 |
| Green | Pesticides and insecticides |
 |
| Silver / Neutral | Laboratory cabinets |
 |
| White / Beige / Gray | Waste or outdoor lockers |
 |
